ART 1500
Home
Product
ART 1500

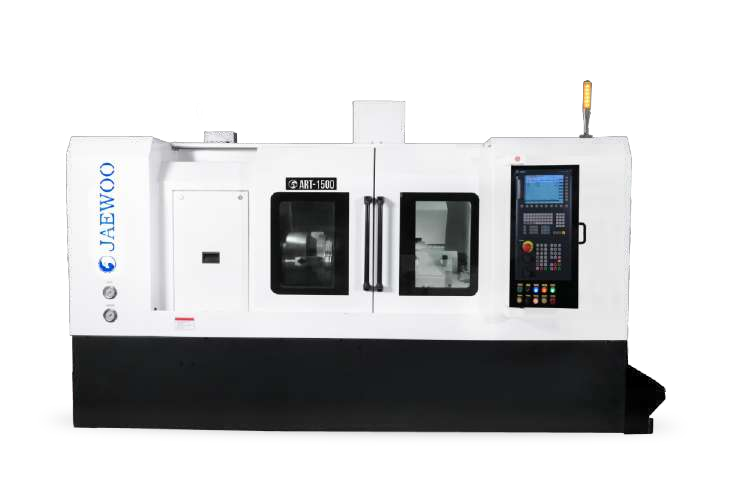

ART 1500
Product Inquiry
Inquiry
SPECIFICATIONS
Details
Units
Specifications
STD. TURNING DIA
MM
400
MAX .TURNING DIA
MM
620
MAX TURNING LENGTH
MM
1500
TRAVEL X / Z
MM
320/1550
RAPID FEED X/Z
M/MIN
20
CHUCK SIZE
MM
400
SPINDLE POWER
KW
15/18.5
SPINDLE BORE
MM
85
SPINDLE NOSE
-
A2-8
WEIGHT (APPROX)
KG
8000
DIM. (LxWxH)
MM
3600x1800x1900
