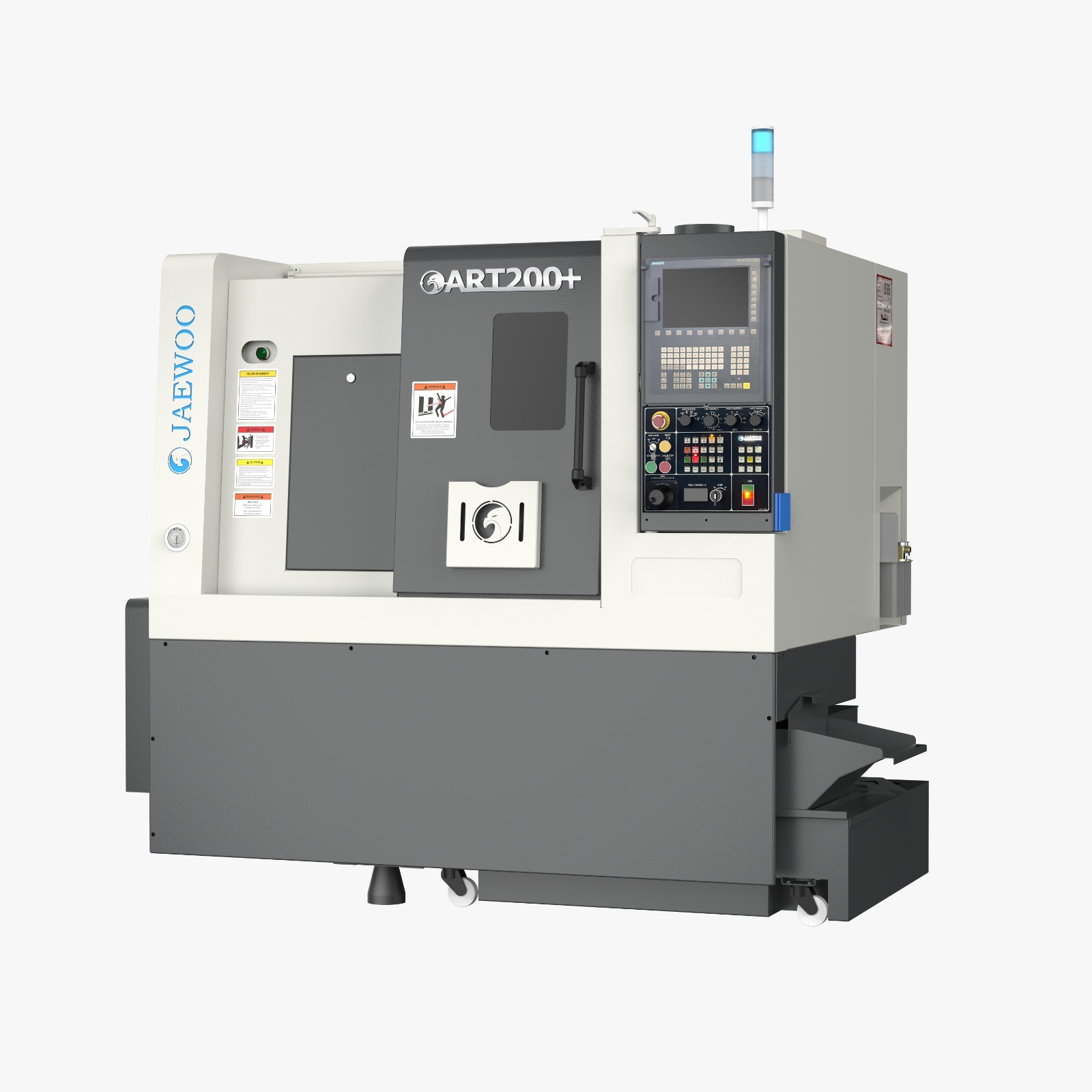

ART 200+

ART 200+

Product Inquiry Inquiry

SPECIFICATIONS

Details

Units

Specifications
STD. TURNING DIA fdgdfg MM 135
MAX .TURNING DIA MM 150
MAX TURNING LENGTH MM 160
TRAVEL X / Z MM 420/210
RAPID FEED X/Z M/MIN 25
CHUCK SIZE MM 165
SPINDLE POWER KW 3.7/5.5
SPINDLE BORE MM 41
X-AXIS TRAVEL / Z-AXIS TRAVEL MM 420/210
SPINDLE NOSE - A2-5
WEIGHT (APPROX) KG 2500
DIM. (LxWxH) MM 1900x1350x1750
