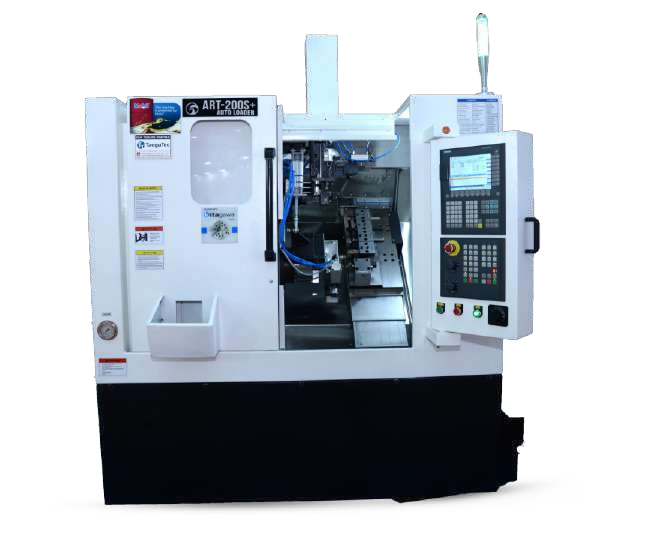

ART 200S+
Product Inquiry
Inquiry
SPECIFICATIONS
Details
Units
Specifications
STD. TURNING DIA
MM
135
MAX .TURNING DIA
MM
150
MAX TURNING LENGTH
MM
160
TRAVEL X / Z
MM
420/210
RAPID FEED X/Z
M/MIN
25
CHUCK SIZE
MM
165
SPINDLE POWER
KW
3.7/5.5
SPINDLE BORE
MM
41
SPINDLE NOSE
-
A2-5
WEIGHT (APPROX)
KG
2500
DIM. (LxWxH)
MM
1900x1350x1750
