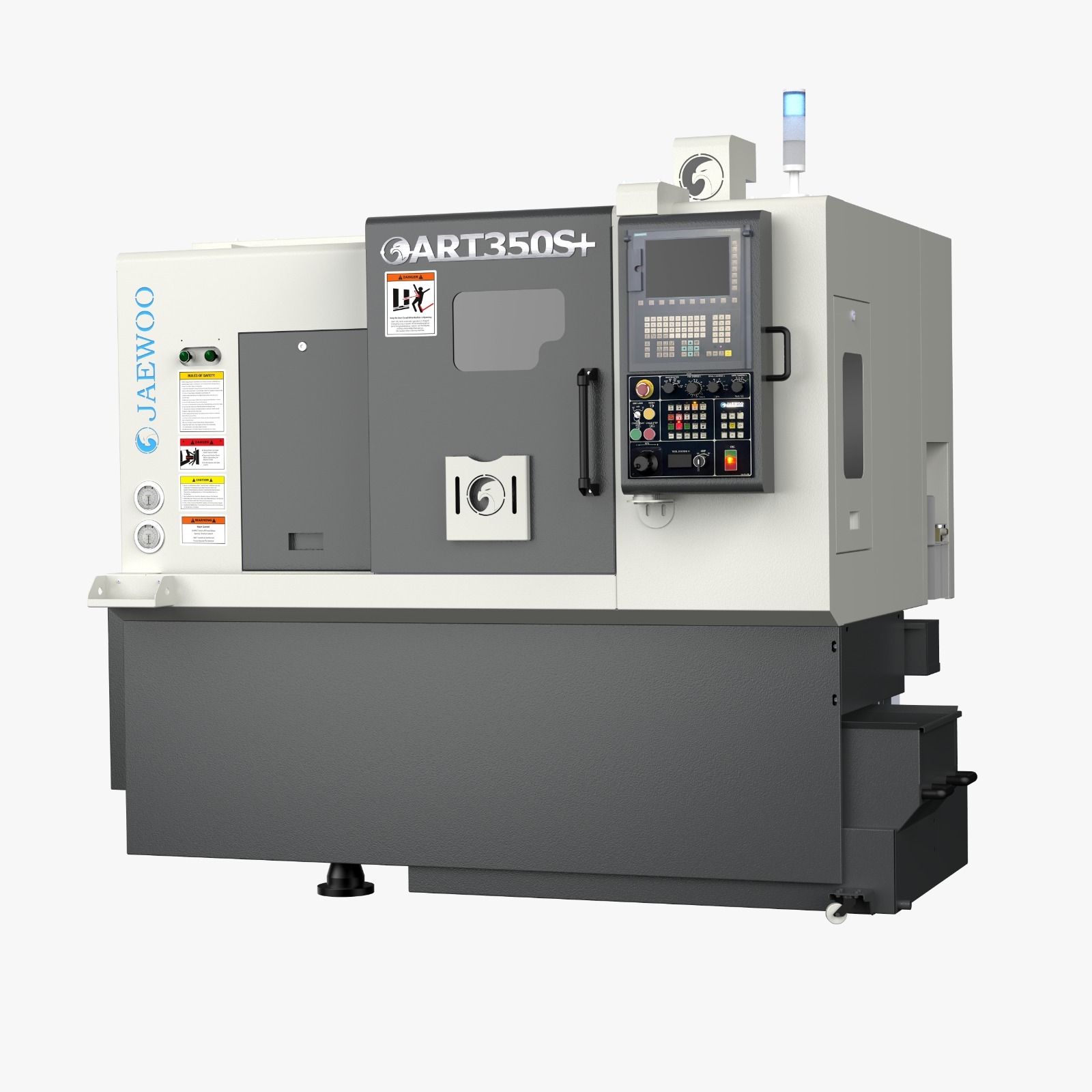

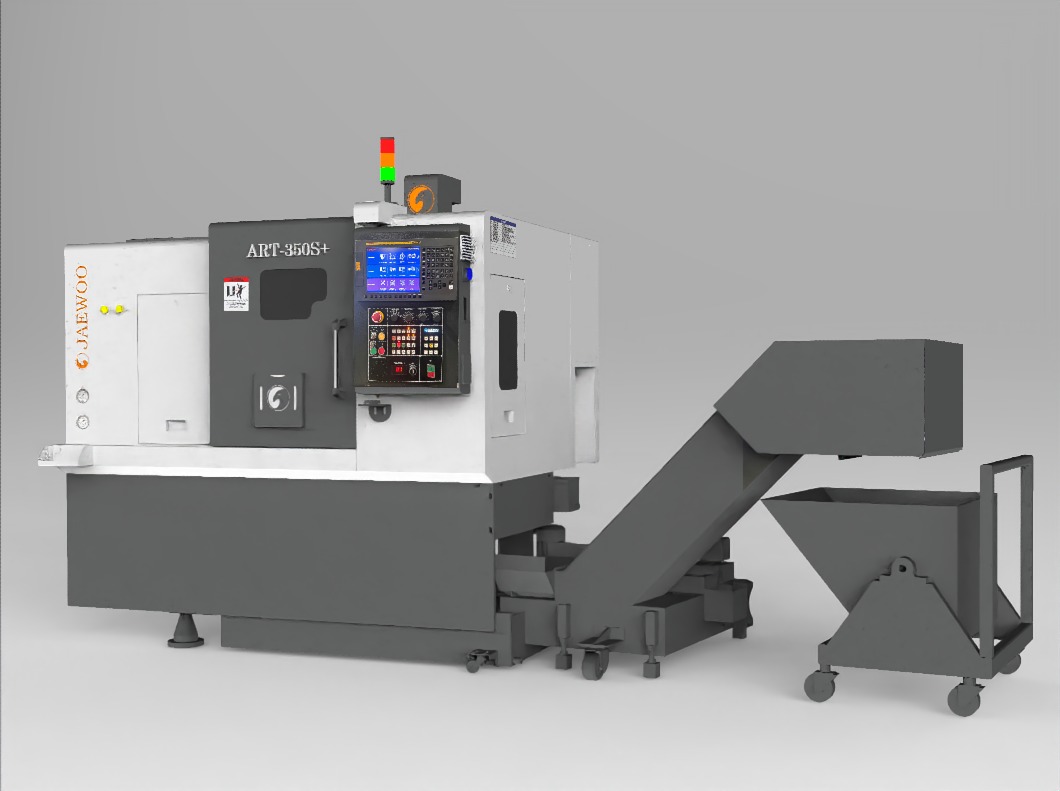

ART 350S+

ART 350S+

Product Inquiry Inquiry Download Catalogue

SPECIFICATIONS

Details

Units

Specifications
STD. TURNING DIA MM 200
MAX .TURNING DIA MM 300
MAX TURNING LENGTH MM 325
TRAVEL X / Z MM 180/350
RAPID FEED X/Z M/MIN 25
CHUCK SIZE MM 200
SPINDLE POWER KW 5.5/7.5
SPINDLE BORE MM 50
SPINDLE NOSE - A2-6
WEIGHT (APPROX) KG 3500
DIM. (LxWxH) MM 2365X1570X2000
