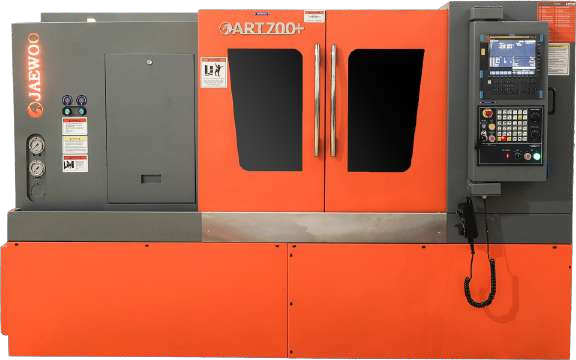

ART 700S+

ART 700S+

Product Inquiry Inquiry

SPECIFICATIONS

Details

Units

Specifications
STD. TURNING DIA MM 330
MAX .TURNING DIA MM 550
MAX TURNING LENGTH MM 675
TRAVEL X / Z MM 275/700
RAPID FEED X/Z M/MIN 25
CHUCK SIZE MM 250/300
SPINDLE POWER KW 11/15
SPINDLE BORE MM 85
SPINDLE NOSE - A2-8
WEIGHT (APPROX) KG 5500
DIM. (LxWxH) MM 2700x1800x1900
