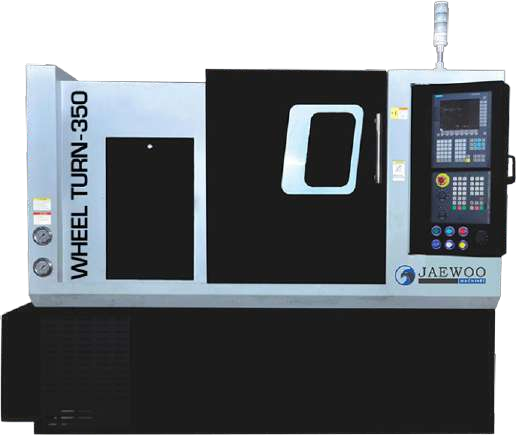

WHEEL TURN 350
WHEEL TURN 350
Product Inquiry
Inquiry
SPECIFICATIONS
Details
Units
Specifications
STD. TURNING DIA
MM
250
MAX .TURNING DIA
MM
330
MAX TURNING LENGTH
MM
300
TRAVEL X / Z
MM
240/350
RAPID FEED X/Z
M/MIN
25
CHUCK SIZE
MM
250
SPINDLE POWER
KW
7.5/11
SPINDLE BORE
MM
63
SPINDLE NOSE
-
A2-6
WEIGHT (APPROX)
KG
4000
DIM. (LxWxH)
MM
2700x1800x1900
