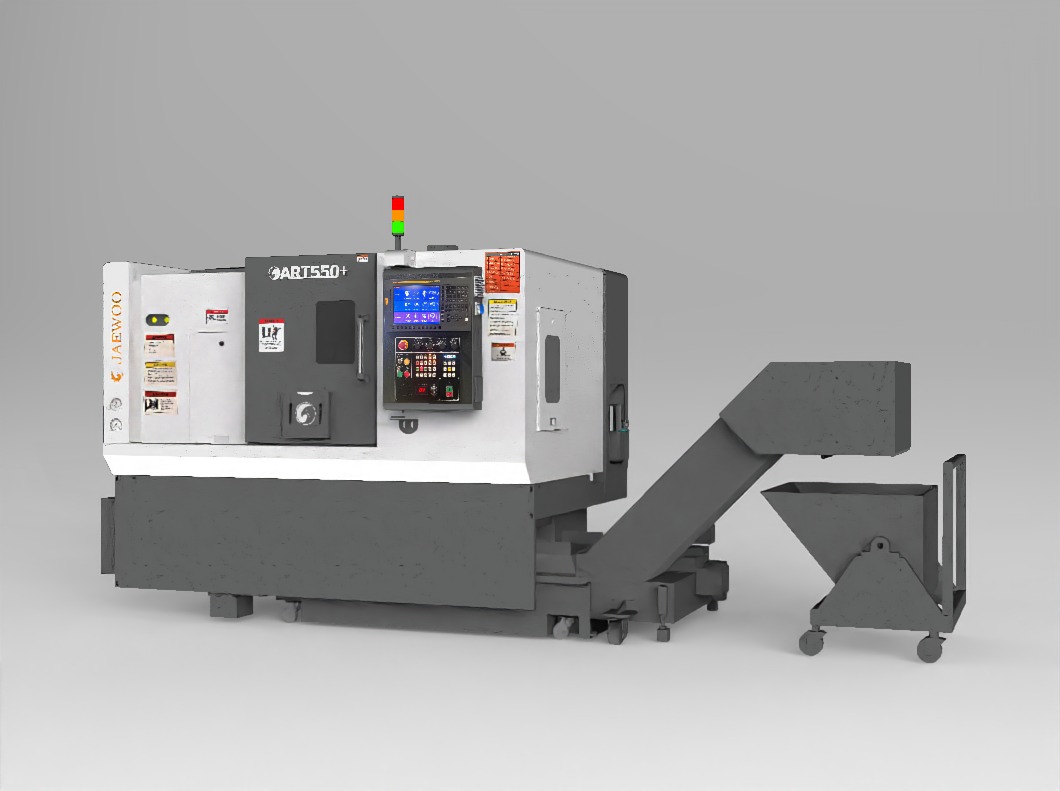

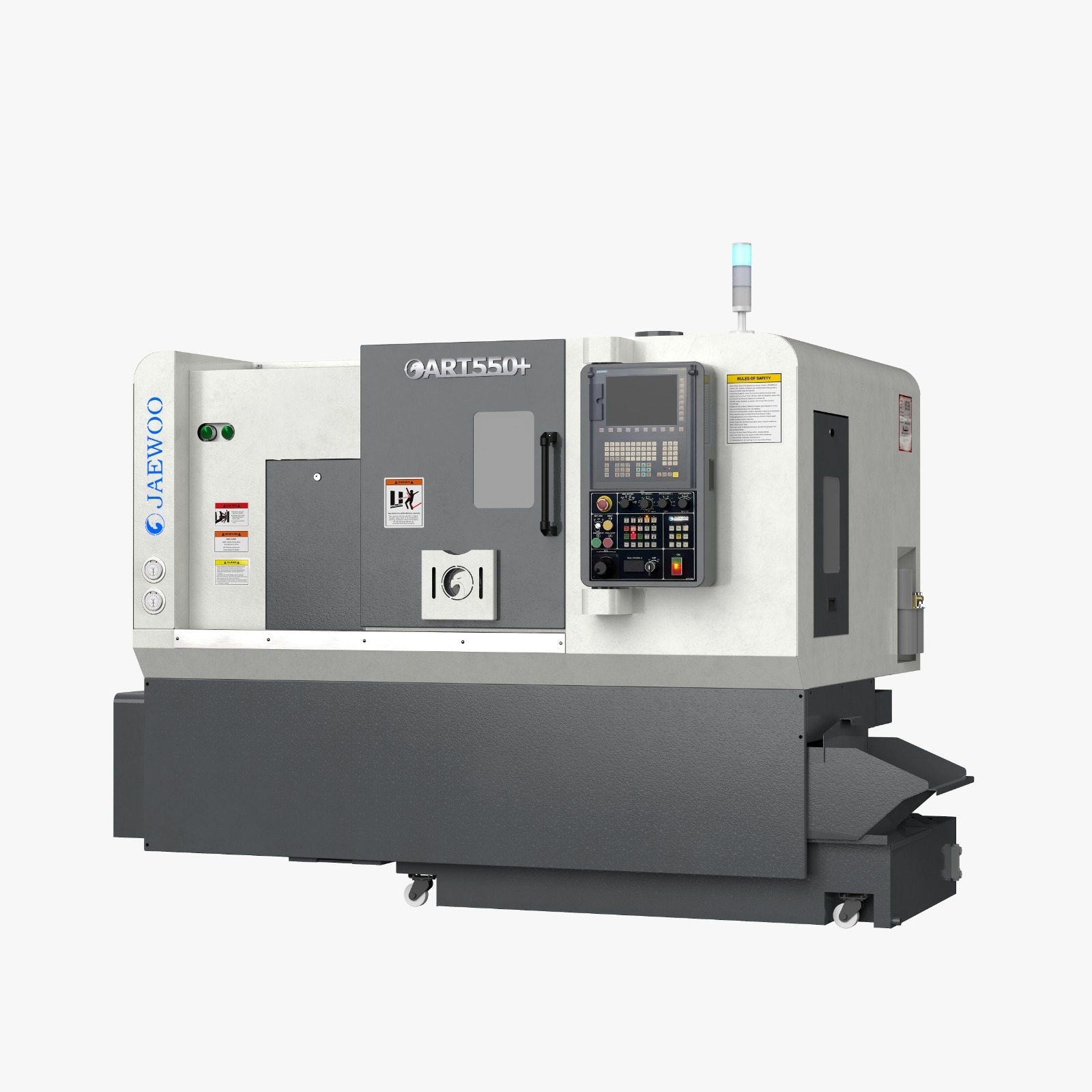

ART 550+

ART 550+

Product Inquiry Inquiry Download Catalogue

SPECIFICATIONS

Details

Units

Specifications
STD. TURNING DIA MM 280
MAX .TURNING DIA MM 350
MAX TURNING LENGTH MM 525
TRAVEL X / Z MM 250/550
RAPID FEED X/Z M/MIN 25
CHUCK SIZE MM 200
SPINDLE POWER KW 7.5/11
SPINDLE BORE MM 63
SPINDLE NOSE - A2-6
WEIGHT (APPROX) KG 4300
DIM. (LxWxH) MM 2540x1640x2060
